Network IP Setting in Windows 8

Advertisement
Another important thing to connect your Windows 8 installed PC to internet is the 'Network IP Setting' of your PC. So, let us learn how to configure your Network IP Windows 8 on your PC. To access your Network IP setting, first of all go to the start menu on your Desktop and Select the 'Network' option from the menu.

Another important thing to connect your Windows 8 installed PC to internet is the 'Network IP Setting' of your PC. So, let us learn how to configure your Network IP in Windows 8 on your PC.



1. To access your Network IP setting, first of all go to the start menu on your Desktop and Select the 'Network' option from the menu.

Windows 8 Network Setting

2. Once you click on the Network option, you will be directed to the Network (WORKGROUP) section, showing all the networks connected to the PC. Now, right click on 'Network' icon located at the end of the right side menu of the computer and click on 'Properties' option.

Windows 8 Network Setting

3. Now, click on the 'Change adapter settings' option on the right side.

Windows 8 Network Setting



Windows 8 Network Setting

4. After clicking on the change adapter setting button you will see the network connections available in your network like Ethernet, Ethernet2, Ethernet3.

Windows 8 Network Setting

5. Now, right click on 'Ethernet' and go to 'Properties'.

Windows 8 Network Setting

6. Now, we will be directed to the 'Networking' section, where you will find the options to configure your Networking.

Windows 8 Network Setting

7. Now select 'Internet Protocol Version 4(TCP/IPv4)' option from the lists of available options and click to 'OK' button.

Windows 8 Network Setting

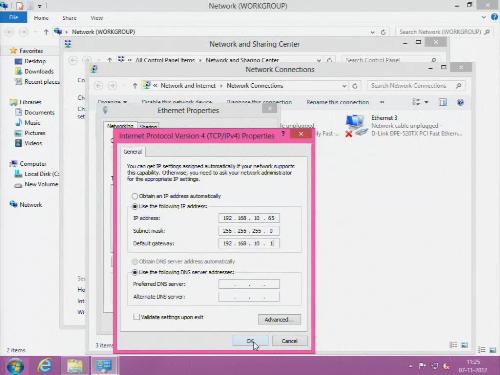

8. Now, select 'Use the following IP address' to enter the IP address.

Windows 8 Network Setting



Windows 8 Network Setting

9. Now, fill the IP address box with the appropriate IP address of your connection and select the 'Use the following DNS server addressees' button and then click to OK button.

Windows 8 Network Setting

10. Now again right click on 'Ethernet' and go to 'Status'.



Windows 8 Network Setting

11. You can now see your internet connection active with Send and receive signal.

Windows 8 Network Setting

12. You can also find the details of your connection by clicking on the Details button below.

Windows 8 Network Setting



Windows 8 Network Setting
