Struts 2 Hello World - Developing
Hello World Application
In this section we will develop Hello World
application based on Struts 2 Framework. Our Struts 2 Hello World
application is your first step towards developing applications based on Struts
2 Framework. We are here providing step by step guide for developing
Hello World application in Struts 2 framework.
Tutorial covers basic steps like creating
directory structure, developing build.xml file to build the application
using ant build tool. Then we explained Java, JSP and configuration
files that are required in this application.
Creating directory structure for the project
Step1: Extract struts 2 download and
copy struts2-blank-2.0.6.war(If you are using latest version of
struts 2 then version may be different for you) to your tomcats webapps
directory. Rename struts2-blank-2.0.6.war to struts2tutorial
and unzip it in the tomcats webapps directory. Now start the tomcat and
type http://localhost:8080/struts2tutorial/

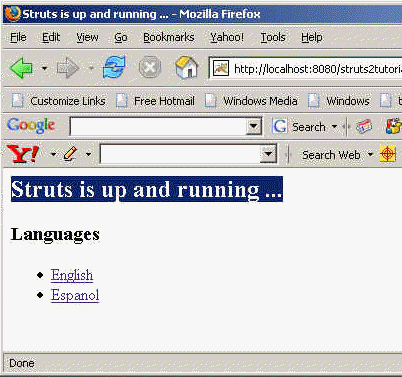

into your browser. You browser should show look like:

Congratulations you have successfully installed
struts 2 blank application to start with.
Step 2: Now delete the content of struts2tutorial\WEB-INF\src
and struts2tutorial\WEB-INF\classes directories, as we don't need
these files that comes with struts 2 blank application.
Step 3: Create build.xml file in
the struts2tutorial\WEB-INF\src and paste the following content
in the build.xml file.
<project name="Struts 2 Tutorial" basedir="../" default="all">
<!-- Project settings -->
<property name="project.title" value="RoseIndia Struts 2 Tutorials"/>
<property name="project.jar.file" value="struts2tutorial.jar"/>
<path id="class.path">
<fileset dir="lib">
<include name="**/*.jar"/>
</fileset>
<fileset dir="libext">
<include name="**/*.jar"/>
</fileset>
</path>
<!-- Classpath for Project -->
<path id="compile.classpath">
<pathelement path ="lib/commons-beanutils.jar"/>
<pathelement path ="lib/commons-digester.jar"/>
<pathelement path ="lib/struts.jar"/>
<pathelement path ="libext/servlet-api.jar"/>
<pathelement path ="libext/catalina-ant.jar"/>
<pathelement path ="classes"/>
<pathelement path ="${classpath}"/>
</path>
<!-- Check timestamp on files -->
<target name="prepare">
<tstamp/>
<copy
file="src/struts.xml"
todir="src/classes"/>
</target>
<!-- Copy any resource or configuration files -->
<target name="resources">
<copy todir="src/classes" includeEmptyDirs="no">
<fileset dir="src/java">
<patternset>
<include name="**/*.conf"/>
<include name="**/*.properties"/>
<include name="**/*.xml"/>
</patternset>
</fileset>
</copy>
</target>
<!-- Normal build of application -->
<target name="compile" depends="prepare,resources">
<javac srcdir="src" destdir="src/classes"
debug="true" debuglevel="lines,vars,source">
<classpath refid="class.path"/>
</javac>
<jar
jarfile="lib/${project.jar.file}"
basedir="src/classes"/>
</target>
<!-- Remove classes directory for clean build -->
<target name="clean"
description="Prepare for clean build">
<delete dir="classes"/>
<mkdir dir="classes"/>
</target>
<!-- Build Javadoc documentation -->
<target name="javadoc"
description="Generate JavaDoc API docs">
<delete dir="./doc/api"/>
<mkdir dir="./doc/api"/>
<javadoc sourcepath="./src/java"
destdir="./doc/api"
classpath="${servlet.jar}:${jdbc20ext.jar}"
packagenames="*"
author="true"
private="true"
version="true"
windowtitle="${project.title} API Documentation"
doctitle="<h1>${project.title}
Documentation (Version ${project.version})</h1>"
bottom="Copyright © 2002">
<classpath refid="compile.classpath"/>
</javadoc>
</target>
<!-- Build entire project -->
<target name="project" depends="clean,prepare,compile"/>
<!-- Create binary distribution -->
<target name="dist"
description="Create binary distribution">
<mkdir
dir="${distpath.project}"/>
<jar
jarfile="${distpath.project}/${project.distname}.jar"
basedir="./classes"/>
<copy
file="${distpath.project}/${project.distname}.jar"
todir="${distpath.project}"/>
<war
basedir="../"
warfile="${distpath.project}/${project.distname}.war"
webxml="web.xml">
<exclude name="${distpath.project}/${project.distname}.war"/>
</war>
</target>
<!-- Build project and create distribution-->
<target name="all" depends="project"/>
</project>
|
Step 4: Create directory libext
under the struts2tutorial\WEB-INF\ then you copy latest Servlets
api jar (in our case servlet-api.jar) file
over there. This library file will be used to compile Servlets in our
application.
Step 5: Now create directories java
and classes under struts2tutorial\WEB-INF\src. The
directory struts2tutorial\WEB-INF\src\java will be used to put
all the java sources file and directory struts2tutorial\WEB-INF\src\classes
will be used by ant build utility to store compiled java files.
Now we have successfully created the directory
structure and ant build file for our Struts 2 Hello World Application.
In the next section we will create JSP, Java file and the configuration
file and then test our Struts 2 Hello World application.
|
